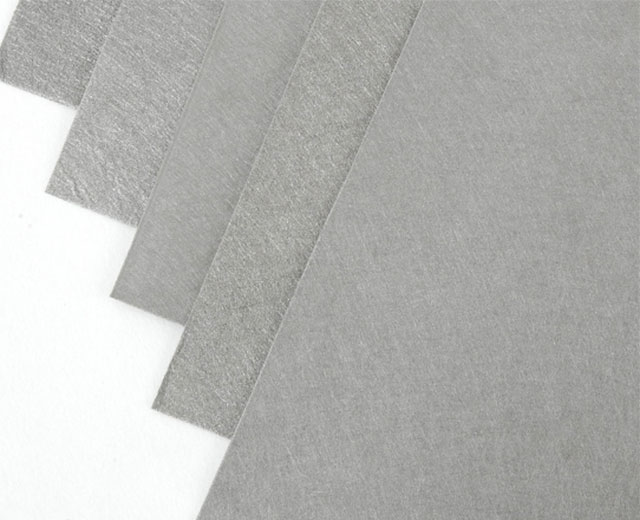

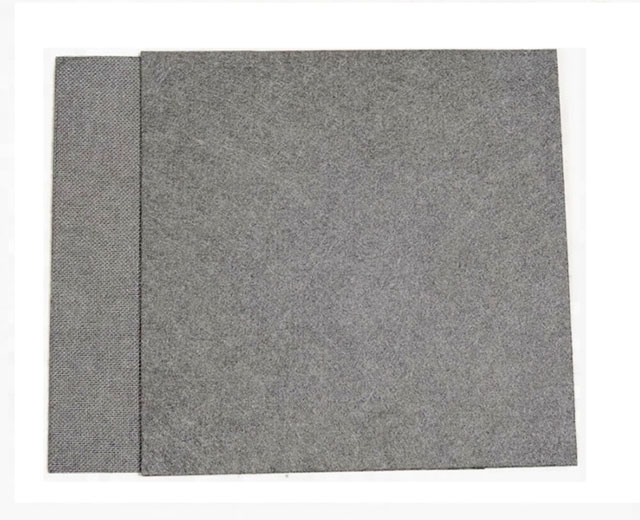

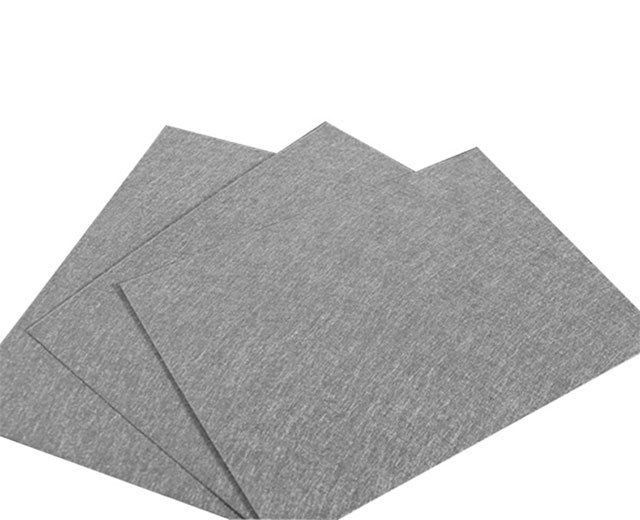

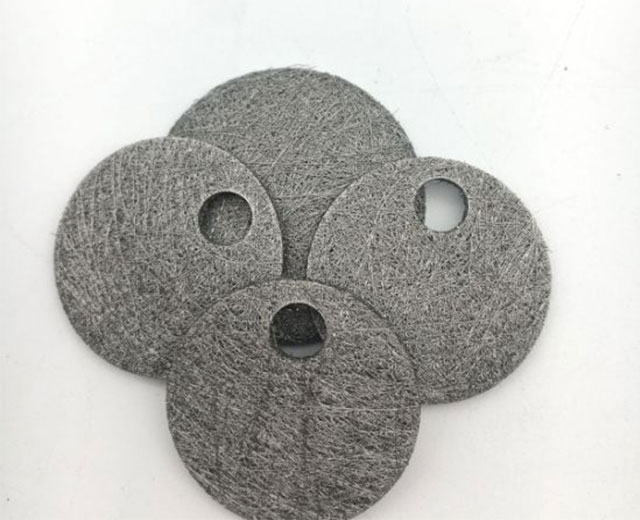

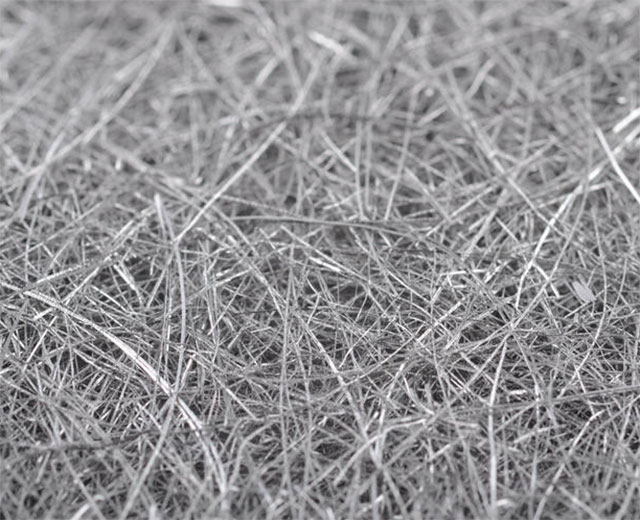

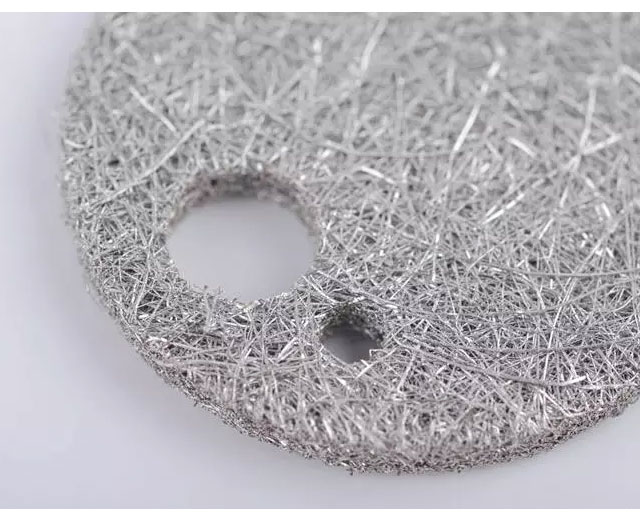

Stainless steel sintered fiber felt is a kind of fiber net sintered by high temperature. Sintered Fiber Felt is produced from non-woven fiber media which are compressed together. Sintered fiber is made of metal fiber, Stainless steel is the mainly alloy; 60-90% porosityFilter Rate from 1 to 100 μm. It has a high strength and still keeps a three-dimensional reticulated porous structure. Besides, it has a high porosity and the bore diameters are distributed evenly. Therefore, it overcomes the metal nets' shortages of easy to block and be damaged; solves the filter paper's problems of not resisting temperature and pressure.They attribute very high porosity, large flow rates and extended service life.
| Absolute Filter Rating | Bubble Point Pressure | Average Air Permeability | Thickness +/-10% | Porosity | Dirt Holding Capacity |
Breaking Strength ±10% |
| (μm) | (Pa) | (I/d㎡/min)+/-10% | (mm) | (%) | (mg/c㎡) | (MPa) |
| 3 | 12300 | 9 | 0.30 | 65 | 65 | 32 |
| 5 | 7600 | 47 | 0.30 | 78 | 78 | 32 |
| 7 | 5045 | 63 | 0.30 | 72 | 72 | 36 |
| 10 | 3700 | 105 | 0.37 | 77 | 77 | 32 |
| 15 | 2470 | 205 | 0.40 | 80 | 80 | 23 |
| 20 | 1850 | 280 | 0.48 | 81 | 81 | 23 |
| 25 | 1480 | 355 | 0.62 | 79 | 79 | 20 |
| 30 | 1235 | 520 | 0.63 | 79 | 79 | 23 |
| 40 | 925 | 670 | 0.68 | 77 | 77 | 26 |
| 60 | 630 | 1300 | 0.70 | 87 | 87 | 28 |
| Material | Stainless Steel wire 304 316 316L and FeCrAl, 310S, Monel, Hastelloy,Inconel, nickel, titanium, etc. |
| Standard Size(mm) | 200x100, 600x1000, 600x1200, 1000x1000, 1000x1200, 1000x1480, 1180x1450, 1180x1500, 1500x1800 |
1.High Filtration Rate and Permeability
2.High dirt holding capacity and filtering accuracy.
3.High heat and corrosion resistance.
4.Low pressure loss and large flow.
5.Can be welded and machined because of its large filter area.
6.Easy cleaning and long service life.
1. Polymer filtration and polyester melt purification.such as polyaramides, polyesters, polypropylene, polyamide, Nylon.
2.Viscose rayon filtering.
3.Filtration of powders and trapping particulates from vacuum and compressed air lines.
4. Filtration of refining process, pre-filtration of ultrafilter.
5. Electronic high temperature gas dust removal.
6. Liquid purification in pharmaceutical, petroleum, biology and beverage industries.
7. Vacuum pump protection filter, filter membrane support, Catalyst filter media.
8. Airbags of cars and fuel filtration of aircraft and ships.
9. Hydraulic system filtration
A:We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.
A:Yes, we can provide free samples to check the quality of our product.
A:We accept T/T and L/C.
A:Yes,we can. We can produce according to your needs, and can recommend you a cost-effective option for you.
A:Our delivery time is usually 20-30 days, depending on the quantity you need.
