Introduction:

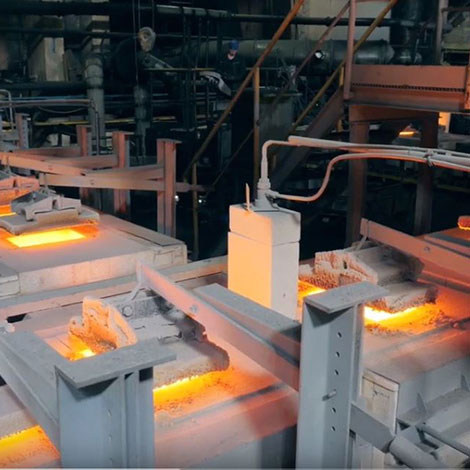

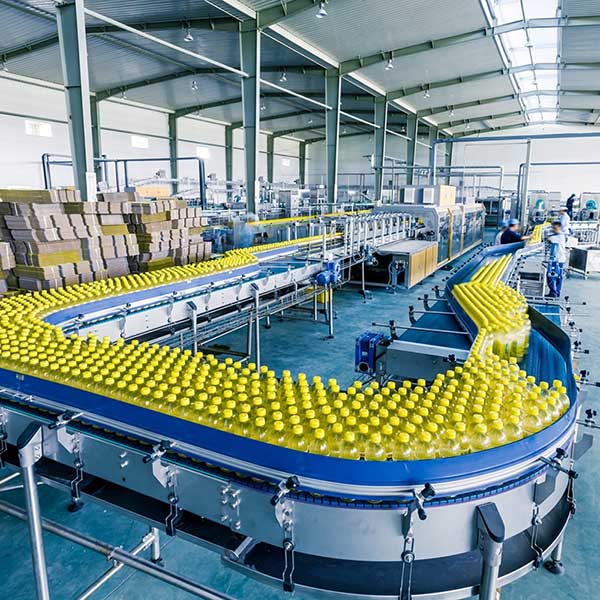

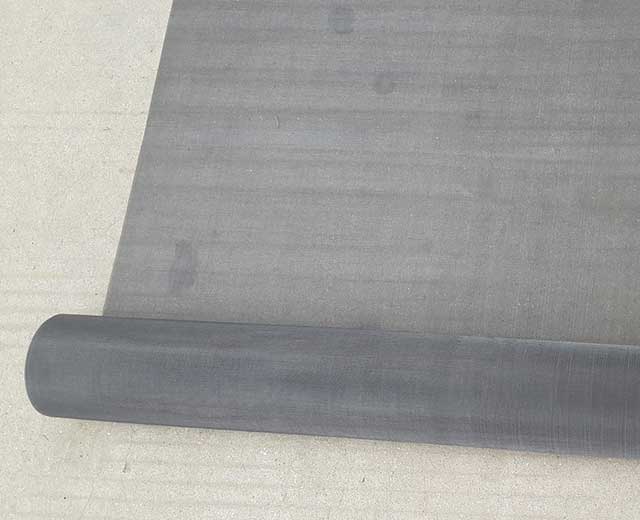

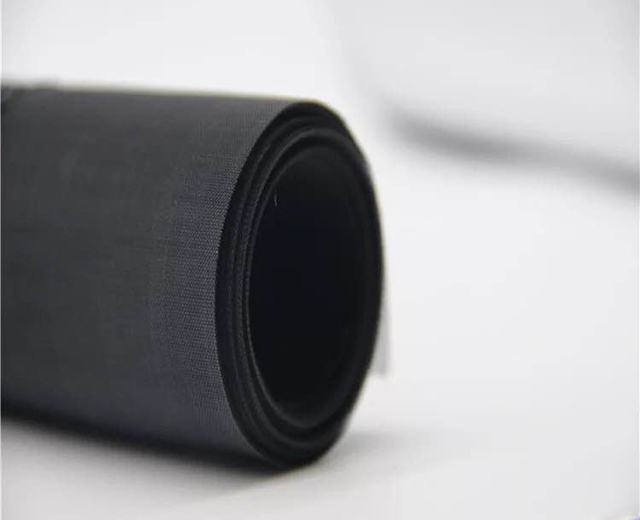

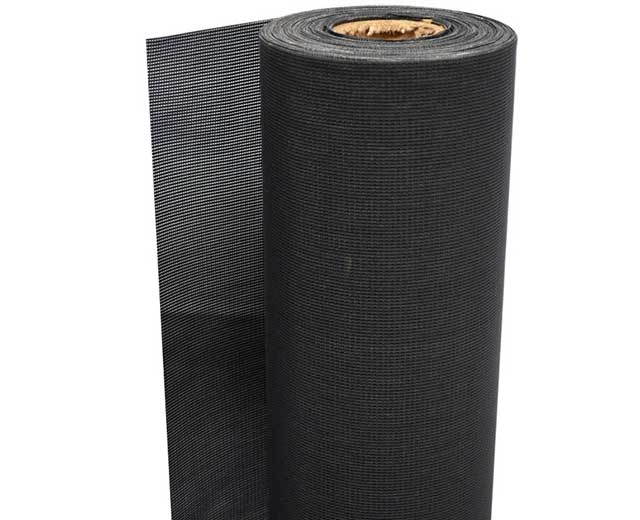

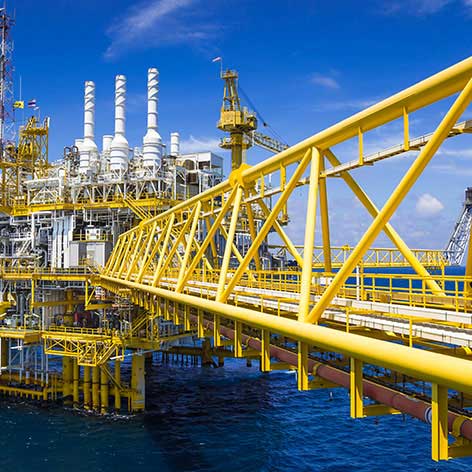

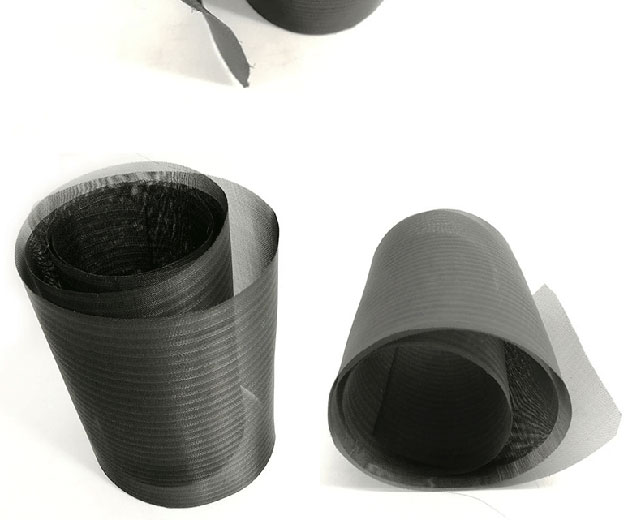

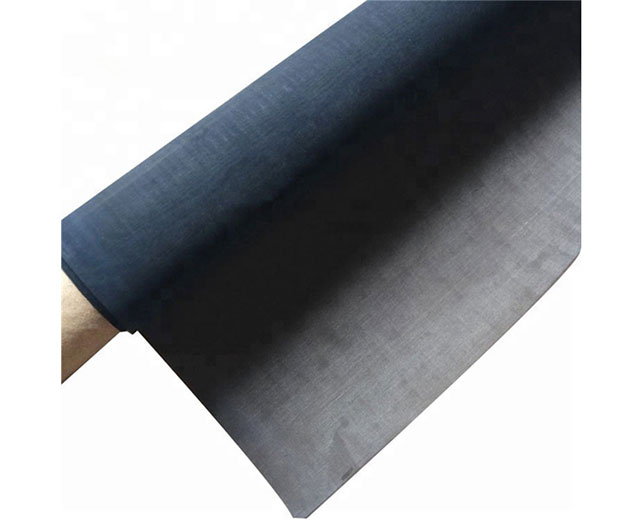

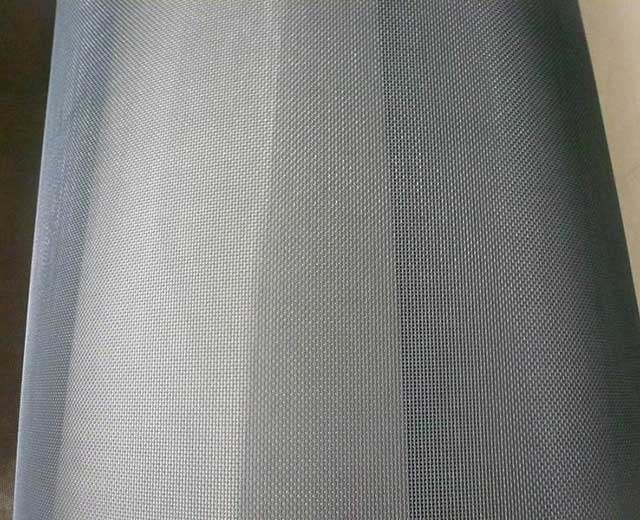

Molybdenum Wire Mesh is made of pure molybdenum wires or alloy wires. The melting point is 2610℃, aperture is square hole, and the aperture is 0.02mm-23.7mm. Molybdenum wire mesh has heat-conductivity and corrosion resistance. It is widely used in high temperature field for sieving and filtering. The main application fields of molybdenum wire mesh are: Aerospace, Nuclear power filed, Electro-vacuum industry, Glass furnaces, Petroleum, Oil and gas industry, New energy industries, Food processing industry.

Specification

Mesh Wire Diameter Mesh Wire Diameter Mesh Wire Diameter
3 1.0mm 24 0.19mm-0.5mm 90 0.1mm-0.12mm
4 0.7mm-1.5mm 26 0.19mm-0.4mm 100 0.07mm-0.14mm
5 0.6mm-1.2mm 28 0.19mm-0.35mm 110 0.08mm-0.09mm
6 0.5mm-1.0mm 30 0.15mm-0.4mm 120 0.07mm-0.1mm
7 0.5mm-0.8mm 32 0.17mm-0.3mm 140 0.06mm-0.07mm
8 0.4mm-1.0mm 34 0.23mm 150 0.06mm-0.07mm
10 0.3mm-1.0mm 35 0.25mm-0.3mm 160 0.06mm
12 0.3mm-0.8mm 36 0.15mm-0.28mm 180 0.05mm
14 0.27mm-0.7mm 40 0.12mm-0.27mm 200 0.05mm-0.06mm
16 0.25mm-0.7mm 50 0.13mm-0.25mm 300 0.03mm-0.04mm
18 0.20mm-0.55mm 60 0.1mm-0.19mm 400 0.023mm-0.03mm
20 0.19mm-0.55mm 70 0.1mm-0.15mm 500 0.025mm
22 0.21mm-0.5mm 80 0.08mm-0.17mm 635 0.018mm

Composition


Molybdenum wire mesh chemical composition

C Fe Ni O Si N Mo
0.01 0.01 0.005 0.007 0.01 0.02 Rem

Feature

1. High tensile strength.
2. Low elongation.
3. Acid and alkaline resistant.
4. Corrosion resistant.
5. High temperature resistant.
6. Good electricity-conductivity.
7. Lightweight.



Application
